CE Certified Woodworking Dust Collector for Industrial Woodworking Applications

Name: CE Certified Woodworking Dust Collector for Industrial Woodworking Applications
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: QDMC-1000
Price: 16590 USD
Availability: InStock

製品詳細

起源の場所: 中国河北

ブランド名: QiaoDa

証明: CE

モデル番号: QDMC-1000

支払及び船積みの言葉

最小注文数量: 1個

価格: 16590

パッケージの詳細: 双方が交渉した。

受渡し時間: 20語日

支払条件: T/T

供給の能力: 10

お問い合わせ

製品詳細

製品の説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                CE certified woodworking dust collector, industrial woodworking dust collection system, woodworking dust collector with warranty


空気圧:	合わせる	バッグの材料:	帯電防止ポリエステルニードル生地
ODM:	はい	ろ過方法:	カートリッジフィルターまたはバッグフィルター
風量:	2280〜23230 m3 / h	フィルター効率:	99.99%
製品名:	木工の粉塵収集システム	ホース径:	4インチ
メンテナンスの必要性:	定期的なフィルターの掃除と交換	空気量:	25000から30000
フィルタのクリーンタイプ:	オートマチックな塵吹き	カスタマイズされた:	受け入れる
モーター出力:	5.5～110kW

空気圧:	合わせる
バッグの材料:	帯電防止ポリエステルニードル生地
ODM:	はい
ろ過方法:	カートリッジフィルターまたはバッグフィルター
風量:	2280〜23230 m3 / h
フィルター効率:	99.99%
製品名:	木工の粉塵収集システム
ホース径:	4インチ
メンテナンスの必要性:	定期的なフィルターの掃除と交換
空気量:	25000から30000
フィルタのクリーンタイプ:	オートマチックな塵吹き
カスタマイズされた:	受け入れる
モーター出力:	5.5～110kW

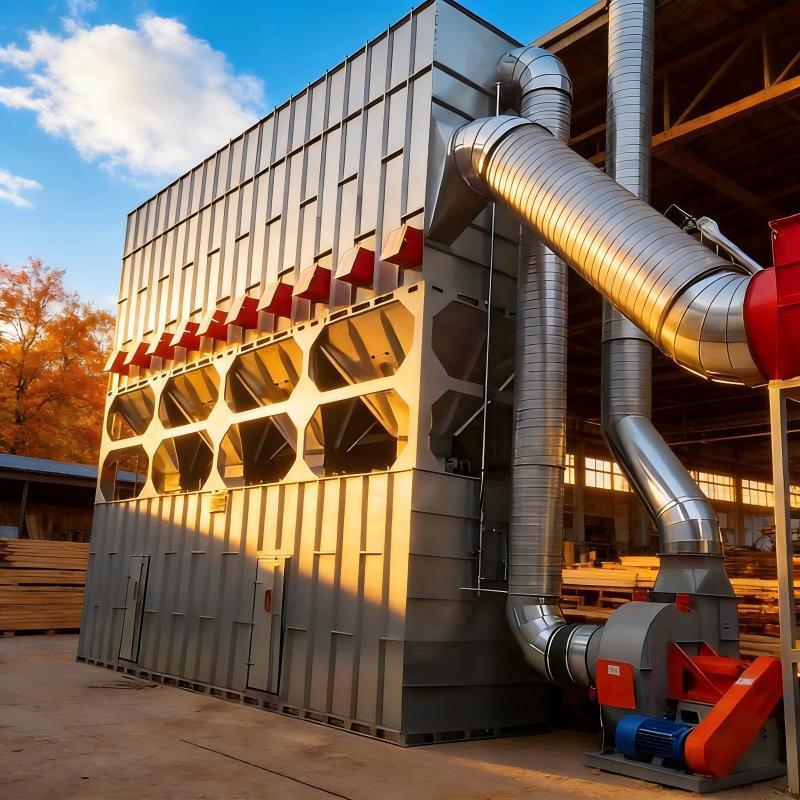

CE Certified Woodworking Dust Collector for Industrial Woodworking Applications

Industrial Woodworking Dust Collector for Efficient Wood Dust Extraction

Our Woodworking Dust Collector is engineered to provide reliable and efficient dust extraction for woodworking factories, furniture manufacturers, cabinet workshops, sawmills, and CNC machining facilities. The system effectively captures fine wood dust, chips, and airborne particles generated during cutting, sanding, drilling, routing, polishing, and milling operations, creating a cleaner, safer, and healthier working environment.

The system incorporates advanced pulse jet cleaning technology to maintain stable airflow and extend filter life. High-quality filter bags efficiently separate dust from the air, achieving filtration efficiency of up to 99.9% for fine particles. Continuous automatic cleaning minimizes maintenance requirements and ensures long-term, uninterrupted operation.

Product Features

High dust collection efficiency up to 99.9%
Automatic pulse jet filter cleaning system
Heavy-duty carbon steel or stainless steel construction
Large airflow capacity for single or multiple woodworking machines
Low operating noise and energy-saving performance
Stable negative pressure for continuous dust extraction
Easy maintenance with quick-access inspection doors
Optional explosion vent, spark arrestor, rotary airlock valve, screw conveyor, and PLC control system

Applications

The woodworking dust collector is widely used in:

Furniture manufacturing plants
Woodworking workshops
MDF and plywood processing
Solid wood furniture production
Cabinet and door manufacturing
CNC router machining centers
Panel saw production lines
Sanding and polishing workshops
Flooring and wooden door factories
Timber and sawmill processing plants

Working Principle

Dust-laden air is drawn into the collector through the duct system by the exhaust fan. Large wood chips settle naturally inside the hopper, while fine dust is trapped on the surface of the filter bags. Clean air passes through the filters and is discharged safely into the atmosphere or returned to the workshop. The automatic pulse jet cleaning system periodically releases compressed air to remove accumulated dust from the filter bags, ensuring consistent airflow and optimal filtration performance.

Optional Configurations

To meet different production requirements, the system can be customized with:

Rotary Airlock Valve
Screw Conveyor
Bucket Elevator
Explosion Vent Panel
Spark Arrestor
Variable Frequency Drive (VFD)
PLC Intelligent Control Cabinet
Online or Offline Pulse Cleaning System
Outdoor Weatherproof Design

Why Choose Our Woodworking Dust Collector?

Customized solutions based on your workshop layout
Professional engineering design and airflow calculation
High-quality filtration components with long service life
Stable performance for 24-hour continuous operation
Fast installation and easy maintenance
ISO and CE compliant manufacturing
Worldwide export experience and technical support
OEM and ODM services available

Technical Advantages

Our woodworking dust collection systems are engineered to maximize dust removal efficiency while reducing energy consumption. Modular construction allows flexible capacity expansion as production grows. Every system is designed according to the customer's airflow requirements, dust characteristics, and factory layout to ensure optimal performance and cost-effective operation.

Whether you need a compact dust collector for a small woodworking shop or a centralized dust collection system for a large furniture manufacturing plant, we can provide a customized solution that improves air quality, protects equipment, and enhances production efficiency.
