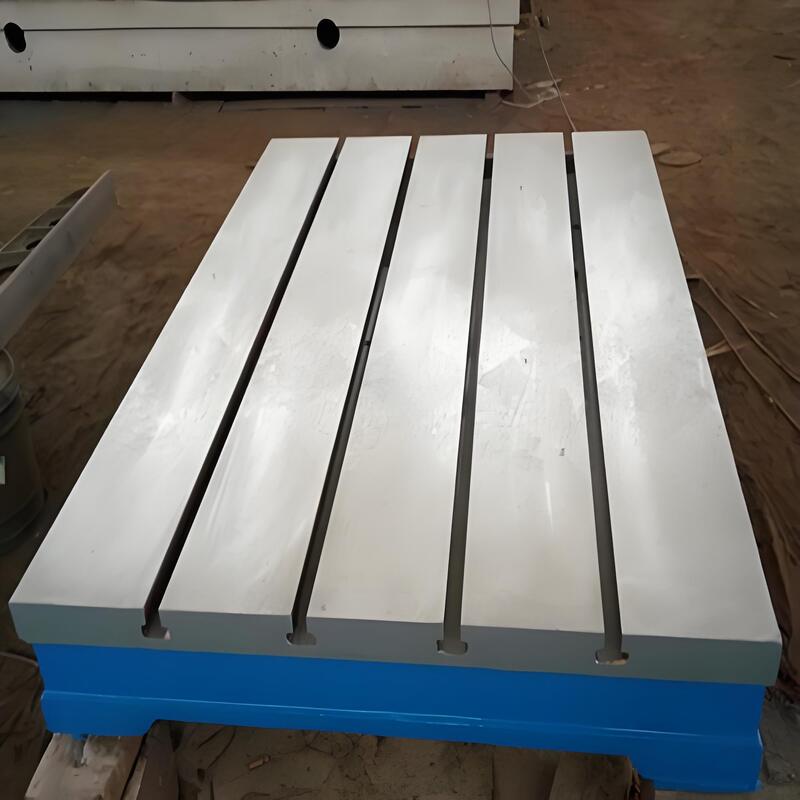

OEM HT250 Cast Iron Welding Table | Precision Ground T-Slot Fixture Plate

Name: OEM HT250 Cast Iron Welding Table | Precision Ground T-Slot Fixture Plate
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: HT250-1000*2000
Price: 2980 USD
Availability: InStock

製品詳細

起源の場所: 中国河北

ブランド名: QiaoDa

証明: CE

モデル番号: HT250-1000*2000

支払及び船積みの言葉

最小注文数量: 1個

価格: 2980

パッケージの詳細: 木箱

受渡し時間: 20語日

供給の能力: 10

お問い合わせ

製品詳細

製品の説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                OEM HT250 cast iron welding table, precision ground T-slot fixture plate, modular welding table with warranty


互換性:	標準のクランプおよび固定具と互換性があります	モジュラー設計:	はい
仕上げる:	粉体塗装	圧縮強度:	245-254kg/mm2
安定性:	高い	使用:	工業生産と製造業
表面平坦度:	±0.1mm	耐食性:	素晴らしい
テーブルの厚さ:	15mm	耐久性:	持続
保証:	1年	テーブルサイズ:	1000mm × 2000mm
高さ調節可能:	オプション	耐荷重:	500kg

互換性:	標準のクランプおよび固定具と互換性があります
モジュラー設計:	はい
仕上げる:	粉体塗装
圧縮強度:	245-254kg/mm2
安定性:	高い
使用:	工業生産と製造業
表面平坦度:	±0.1mm
耐食性:	素晴らしい
テーブルの厚さ:	15mm
耐久性:	持続
保証:	1年
テーブルサイズ:	1000mm × 2000mm
高さ調節可能:	オプション
耐荷重:	500kg

OEM HT250 Cast Iron Welding Table | Precision Ground T-Slot Fixture Plate

Product Overview

Our OEM HT250 Cast Iron Welding Table is a heavy-duty, high-precision industrial fixture plate designed for professional welding, assembly, inspection, and tooling setup applications. Crafted from premium HT250 gray cast iron with ultra-precision surface grinding, this T-slot fixture plate delivers exceptional dimensional stability, vibration damping performance, and long-term wear resistance.

Fully customizable in size, T-slot specification, and processing requirements, it serves as a universal foundational tool for metal fabrication workshops, automated welding lines, mechanical processing plants, and mold debugging scenarios. Each table undergoes complete stress relief treatment and precision calibration to ensure zero deformation under long-term heavy-load operation.

Core Product Advantages

Premium HT250 Cast Iron Material Performance

Utilizing national standard HT250 gray cast iron with dense pearlite matrix and unique graphite flake structure, this table offers superior industrial adaptability. Features include bending strength above 250MPa, surface hardness of HB170-HB240, excellent compression and impact resistance, and natural graphite self-lubrication that reduces surface friction and extends service life beyond 10 years.

Precision Ground & Stable Dimensional Accuracy

Multi-stage precision grinding technology ensures flatness tolerance within 0.05mm/1000mm, meeting high-precision welding and fixture positioning standards. T-slots are precisely milled with uniform spacing, smooth inner walls, and no burrs for tight fitting with standard clamping fixtures and accessories.

Complete Stress Relief & Anti-Deformation Structure

Dual stress relief treatments including high-temperature annealing and 3-6 months natural aging eliminate internal casting and processing stress. Integral casting with thickened base and reinforced rib structure resists deformation from welding high temperatures, mechanical impact, and long-term static loads.

Universal T-Slot Design & Strong Compatibility

Standard T-slot layout (customizable slot pitch and size) compatible with mainstream welding clamps, positioning pins, pressure plates, bolts, and modular fixture systems. Open T-slot structure supports multi-directional workpiece fixing and flexible positioning for complex welding operations.

Industrial Durability & Easy Maintenance

Cast iron surface provides excellent high-temperature resistance, rust resistance, and scratch resistance. Matte precision grinding surface minimizes welding slag and dust accumulation. Standard load capacity of 2,000kg with heavy-duty custom options available.

Detailed Technical Parameters

Item	Technical Specification
Material	National Standard HT250 Gray Cast Iron
Surface Hardness	HB170 - HB240
Flatness Tolerance	0.05mm/1000mm (Precision Grade)
Processing Technology	Integral Casting + High-temperature Annealing + Natural Aging + Precision Surface Grinding
Standard T-Slot Spec	16mm/28mm (Custom Slot Pitch 50mm/100mm Optional)
Standard Load Capacity	2000KG (Custom Heavy-duty Load Available)
Surface Treatment	Precision Grinding, Rust-proof Passivation
Deformation Resistance	Zero Deformation After Long-term Heavy-load Operation
Service Life	More Than 10 Years of Industrial Service Life
Customization Service	Size, T-slot, Drilling, Tapping, Logo, Non-standard Structure OEM

Product Detailed Features

Integral Casting Molding: One-piece casting without splicing, uniform internal structure, no sand holes, trachoma or porosity
Multi-stage Precision Processing: Rough grinding, fine grinding, and precise calibration three-step processing
Optimized Rib Structure: Reinforced support ribs disperse bearing pressure and improve stability
Standardized T-slot Processing: Industrial standard slot size and spacing for global compatibility
Safe & Humanized Design: Smoothly chamfered edges and reserved mounting holes for safety and convenience

Application Scenarios

This HT250 cast iron T-slot welding table is widely applicable to metal welding fabrication, mechanical parts assembly, precision size inspection, mold debugging and testing, automated welding fixture positioning, equipment calibration, and batch workpiece processing. Suitable for automobile manufacturing, hardware processing, engineering machinery, aerospace accessories, ship parts, and custom metal processing industries.

Professional OEM & Customization Service

Full-range OEM/ODM customized services including custom table dimensions, T-slot specifications, drilling, tapping, counterbore processing, brand logo printing, and non-standard special-shaped fixture plates. Our technical team provides structural optimization and one-stop solutions from drawing confirmation to finished product inspection.

Quality Assurance & Service

All products undergo strict quality inspection including raw material testing, hardness testing, flatness precision detection, and stress inspection. Professional export packaging ensures safe transportation. Long-term after-sales technical support and product warranty service with quick response to customer needs.
